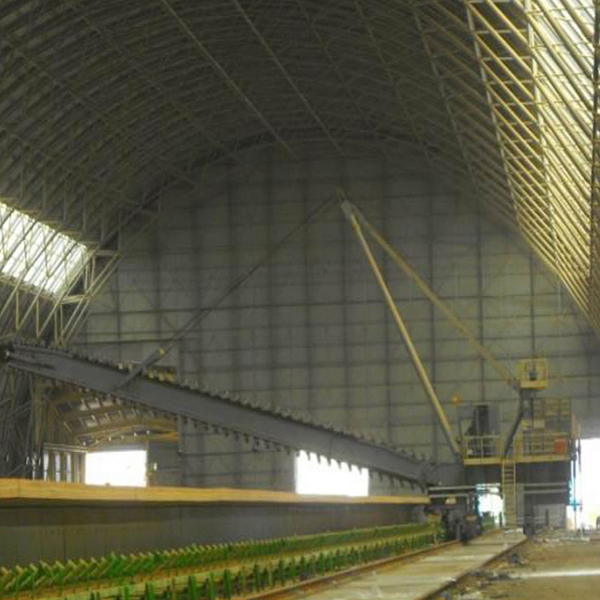

Product Introduction Of Scraper Reclaiming Machine:
The scraper reclaimer we produce can homogenize various materials. Side type reclaiming machine is widely used in cement and building materials, coal, electricity, metallurgy, steel, chemical industry and other industries. The scraper reclaiming machine we produce can adjust the material reclaiming speed and depth according to actual production needs, which increases the flexibility of side type reclaimer.
Technical Parameters Of Scraper Reclaiming Machine:
| Model | Capacity (Max) | Outlet Belt Width | Rails Gauge | Rail Type |
| QC300/26.13 | 300t/h | 800mm | 4m | discharge side rail type QU120 |
| opposite side rail type QU100 | ||||
| QC200/26.13 | 200t/h | 800mm | 4m | discharge side rail type QU120 |
| opposite side rail type QU100 |
Function Of Side Type Reclaiming Machine:
Scraper chain of side type scraper reclaiming machine:
Side type scraper reclaiming machine can be used for both horizontal and inclined transportation.
Lifting system of side type reclaiming machine:
The lifting system of side type scraper reclaiming machine consists of electric hoist, pulley, wire rope and steel structure support. The electric hoist is used for equipment lifting to make the scraper chain tilt at a suitable angle for collecting materials.
Feeding hopper of side type reclaimer:
The discharge end of side type scraper reclaiming machine adopts [GF1] design. The discharge belt bypasses the impact roller on the loading drum to achieve material discharge buffering. The use of impact roller can reduce the impact on the discharge belt conveyor.
Cab of scraper reclaimer:
The cab of side type reclaimer is installed on the steel structure support, and is equipped with PLC system and electrical cabinet inside.
Counterweight of scraper reclaimer:
Counterweight is used for side type scraper reclaiming machine and prevents it from tipping over.

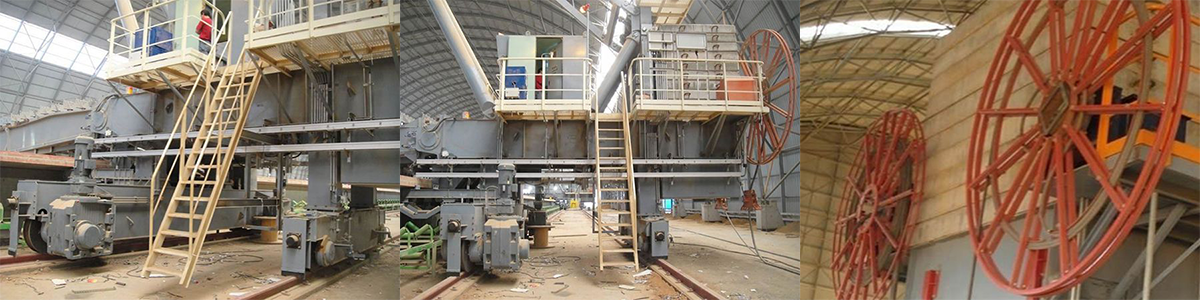

Structure of Side Type Reclaiming Machine:
Travelling mechanism:
Platform:
Cable reel:
Features Of Side Type Reclaimer:
The side type reclaimer we produce adopts automatic operation to realize automatic stacking and reclaiming.
The side type reclaimer has set a variety of stacking and reclaiming operation modes.
Compared with other types of reclaiming equipment, the scraper reclaimer consumes less energy during operation.
The side type reclaiming machine can effectively control the generation of dust during the reclaiming process and meets environmental protection standards.
About Us:
Liyang Sinoma was established in Liyang, Jiangsu in 2007 with a total investment of 1.5 billion yuan. It is an international engineering service provider integrating scraper reclaimer development and design, processing and manufacturing, engineering packages, and technical consulting services. Liyang Zhongcai can provide customized product services based on customers' specific needs for scraper reclaimers to meet customers' unique needs. We also provide stable and reliable logistics services and take appropriate safety measures to prevent scraper reclaimers from being damaged or lost during transportation. We are a company that specializes in manufacturing mechanical products such as scraper reclaimers. If you have any questions about scraper reclaimers, please contact us.
