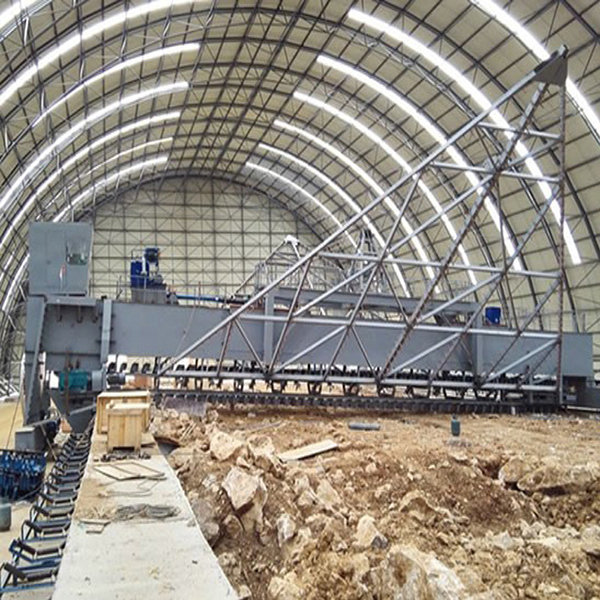

Product Introduction Of Scraper Reclaiming Machine:
The bridge type reclaiming machine we produce is a material yard system for continuous and efficient bulk material reclaiming, with a reclaiming capacity of 1100T/H. The bridge type reclaimer can realize the continuous operation of transportation, loading and unloading, and mixing of bulk materials such as coal, ore, and chemical raw materials. The efficient transportation and storage system of scraper reclaimer is widely used in thermal power plants, building materials plants, cement plants, mines, ports and docks, steel metallurgy, chemical industry, coal plants, coke oven plants and other raw material storage and transportation sites.
Technical Parameters Of Scraper Reclaiming Machine:
Model: QG1200/38.
Capacity (max): 1200 tons/hour.
Export belt width: 1400mm.
Track gauge: 38m.
Track type: QU80 rail.
Track gauge: 55 meters.
Scraper chain width: 2m.
Features of Portal Scraper Reclaimer:
The scraper reclaiming machine we produce is suitable for a variety of materials, including sticky, corrosive or brittle materials, as well as materials with different bulk densities and particle sizes.
The bridge type reclaiming machine can efficiently reclaim materials over a large area, improving material handling capacity and production efficiency.
Compared with other types of reclaiming equipment, the bridge type reclaimer has lower energy consumption and strong adaptability during operation.

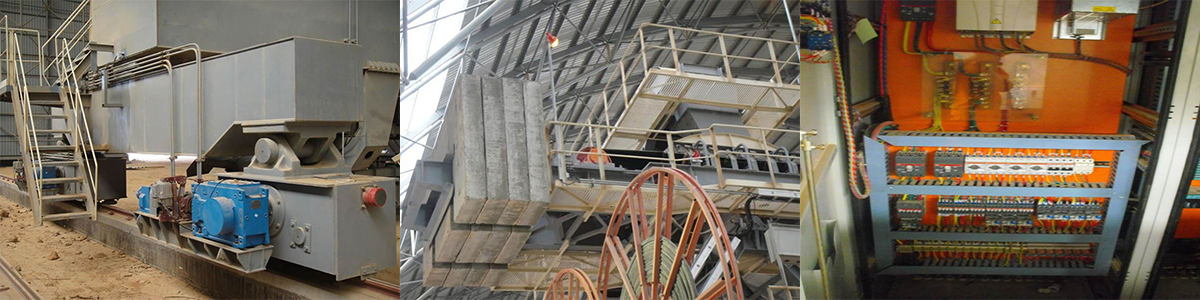

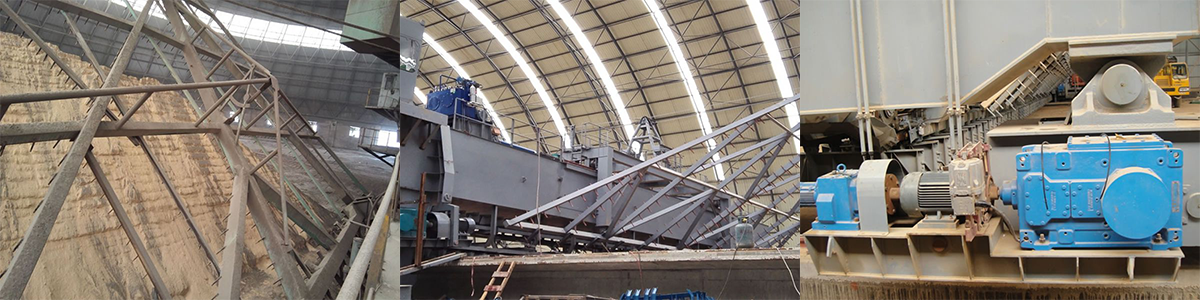

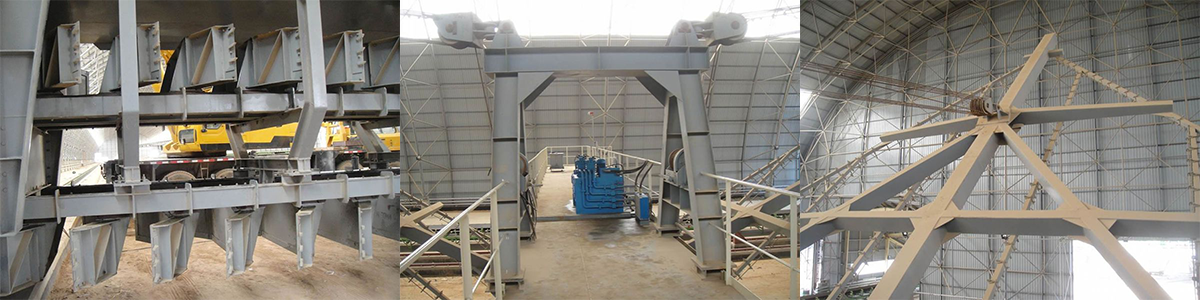

Components of Portal Scraper Reclaimer:
Scraper conveying system
Rake system
Rake system
Bridge girder
End beam
Travelling mechanism
Cable reel
Control room
About Us:
Our company has a large-scale mechanical equipment manufacturing base with an annual processing capacity of 300,000 tons. It occupies an important position in China's heavy equipment manufacturing industry. Products such as bridge type reclaimer are exported to more than 50 countries and regions around the world. Liyang Zhongcai has a professional technical support team that can effectively solve the technical problems encountered by customers in the process of using portal scraper reclaimer. We also have a wide service network, which can make the scraper reclaiming machine run stably for a long time, and customers can get timely after-sales service no matter where they are located. Thank you for your support for our bridge type reclaiming machine, please feel free to contact us.
