Product Introduction Of Vertical Roll Mill:
The vertical coal mill we produce is used for grinding raw materials, mixed cement and slag powder. The main components of vertical cement mill include grinding disc, grinding roller, transmission device, hydraulic system and control system. Vertical raw mill is widely used in cement, power, metallurgy, chemical industry, non-metallic minerals and other industries. Vertical grinding machine is particularly suitable for grinding cement raw materials, clinker, coal, limestone, slag and other materials. Vertical coal mill has the advantages of high efficiency, energy saving, environmental protection and high degree of automation. Vertical coal mill is an ideal grinding equipment in modern industry.
Technical Parameters Of Vertical Raw Mill:
| Model Of Vertical Raw Mill | Main Motor Power(Kw) Of Vertical Raw Mill | Capacity(t/h) of vertical raw mill | Plant Scale(T/D) Of Vertical Raw Mill |
| LRM36.4 | 1600～1800 | 180～200 | 2200 |
| LRM38.4 | 1800～2000 | 210～230 | 2500 |
| LRM40.4 | 2240～2500 | 250～280 | 3200 |
| LRM41.4 | 2500～2600 | 280～300 | 3200 |
| LRM43.4 | 2800～3000 | 320～360 | 4500 |
| LRM46.4 | 3150～3350 | 350～380 | 4500 |
| LRM50.4 | 3800～4000 | 400～420 | 4500 |
| LRM53.4 | 3800～4200 | 420～450 | 5000 |
| LRM56.4 | 4000～4500 | 450～500 | 6000 |
| LRM60.4 | 4800～5000 | 530～550 | 7200 |
| LRM60.6 | 4800～5100 | 540～560 | 7500 |

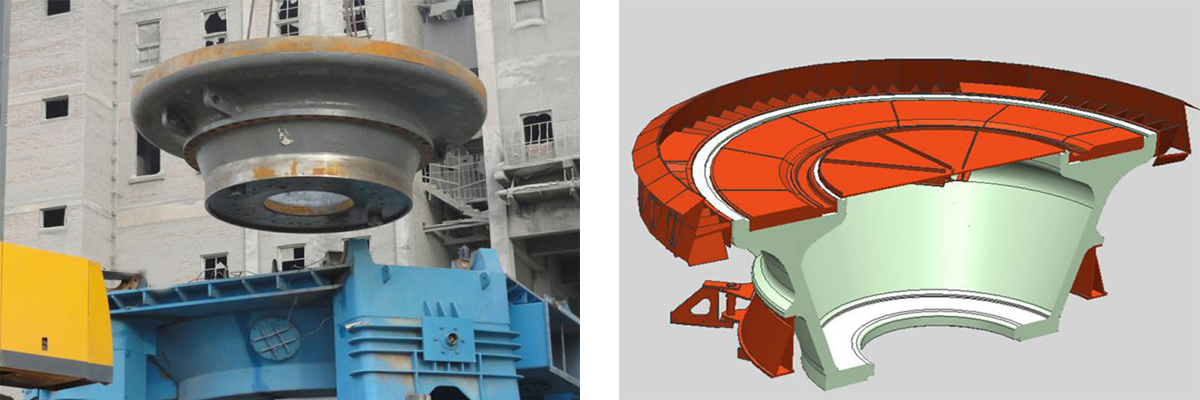

Grinding Table Design:

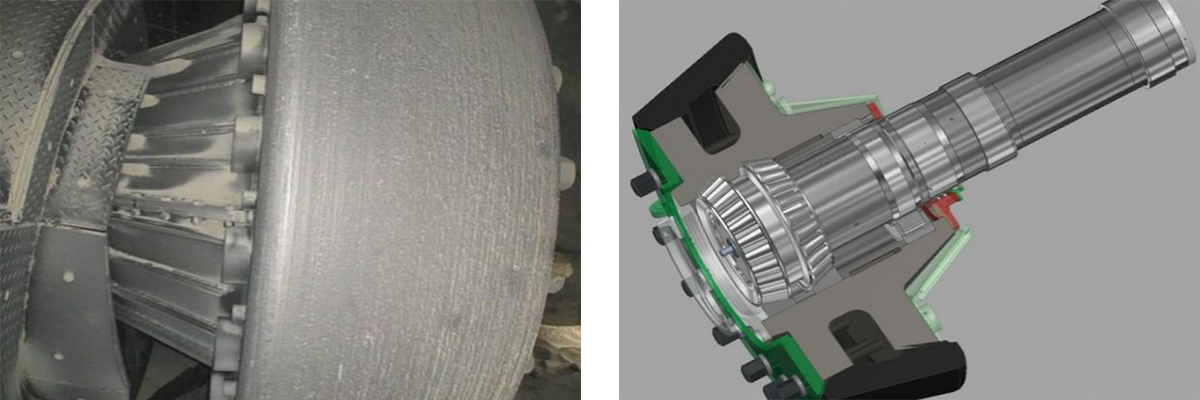

Grinding Roller Design:

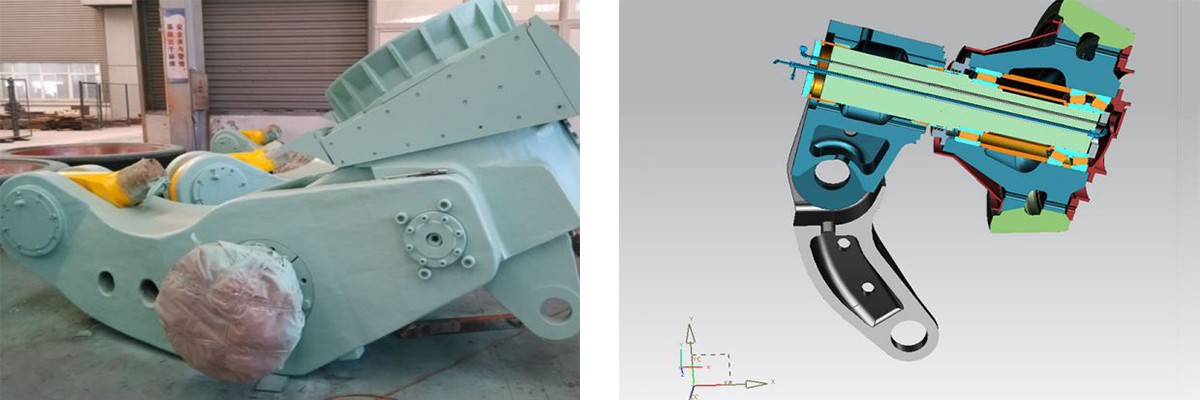

Rocker Arm Design:

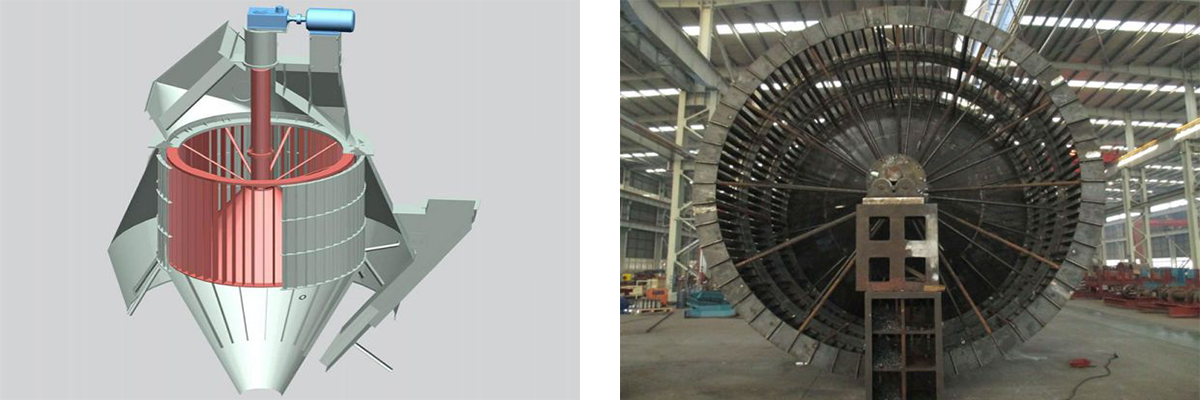

Separator Design:

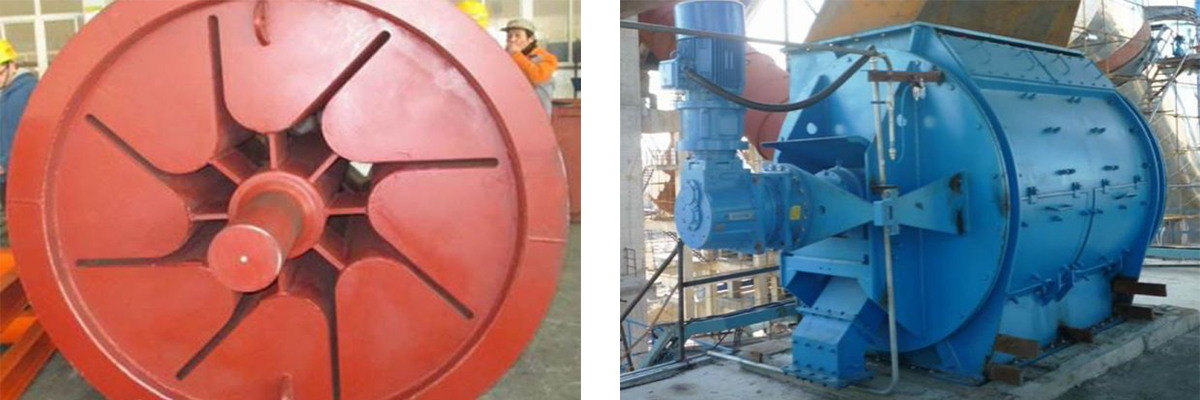

Rotary Feeder Design:

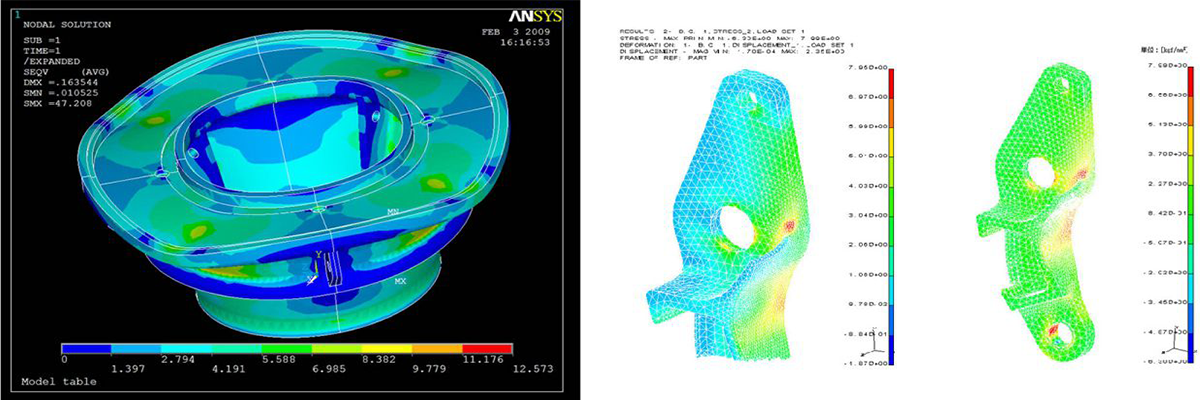

Finite Element Analysis Of Key Components:
Features Of Vertical Grinding Machine:
The grinding part of the vertical cement mill adopts a horizontal grinding table and conical grinding roller design, which runs smoothly, has little wear and low energy consumption.
The vertical roll mill we produce is a kind of equipment that uses the weight and pressure of materials for grinding.
Compared with traditional grinding machines, the vertical roll mill adopts direct rolling, which reduces the number of material cycles in the vertical grinding machine and reduces energy consumption.
The vertical cement mill has a compact structure, high grinding efficiency and large processing capacity.
About Us:
SINOMALY occupies an important position in China's heavy equipment manufacturing industry. Its vertical coal mill and other products cover industries such as cement, metallurgy, mining, electricity, coal, chemical industry and environmental protection. We can provide customized product services according to customers' specific needs for vertical coal mill to meet customers' unique needs for vertical coal mill. We also provide stable and reliable logistics services and take appropriate safety measures to prevent vertical roll mill from being damaged or lost during transportation. We have cooperated with many customers in the vertical roll mill and other machinery manufacturing industries. You can rest assured that if you have any questions about vertical grinding machine, please contact us.
