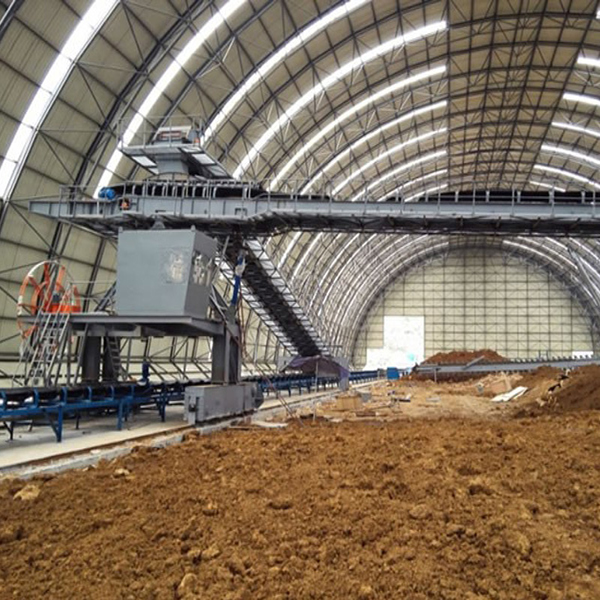

Product Introduction Of Boom Type Stacker:
The boom type stacker we produce is suitable for stacking cement, coal, metallurgical flour and chemical products. boom type stacker can handle a variety of materials. The side type boom stacking machine is designed for efficient stacking over a wide area. The structure of the boom type stacker allows materials to be stacked quickly and accurately in specific locations, thereby improving overall material handling efficiency.
Technical Parameters Of Side Type Stacker:
| Boom Type Stacking Machine Model | Capacity (Max) Of Boom Type Stacking Machine | Inlet Belt Width Of Side Type Stacker | Rails Gauge For Side Type Stacking Machine | Rail Type Of Side Type Stacking Machine |
| DCX600/19.6 | 600t/h | 1000mm | 5m | 43kg/m |
| DB1600/23 | 1600t/h , max:1850t/h | 1400mm | 5m | 50 kg/m |

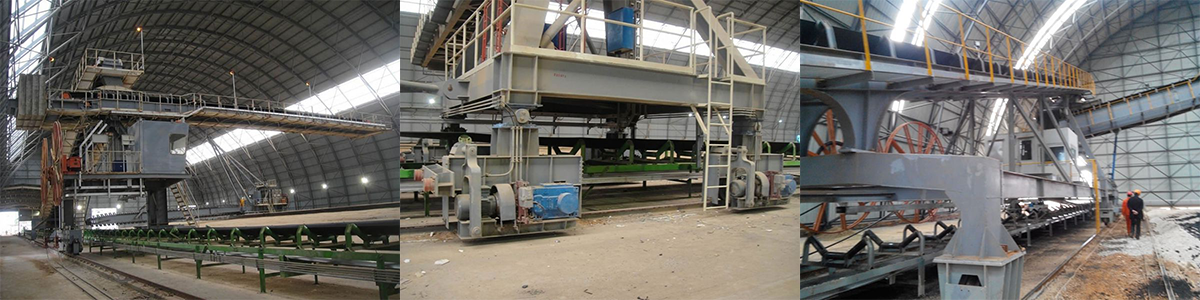

Main Parts:
Cantilever of side type stacker: The cantilever of boom type stacker is welded with I-beam. Side type stacker is equipped with cantilever conveying device, tensioning device, flow measuring device, slip detector, anti-deviation device, etc. The discharge barrel of side type boom stacking machine is equipped with adjustable baffle. By adjusting the angle and position of the baffle of side type boom stacking machine, the drop point can be adjusted.
Side type stacking machine type car running mechanism: Boom type stacking machine type car running mechanism with triangular gate suspension movement device assembly, practical driving time control, side type stacking machine type triangular gate lower part with flat platform, For use with a wide range of liquid cartridges.
Tripper Car: The feed car is used for distributing material into the stockyard, and consists of the discharge hopper, oblique beams, A columns and more.
Hydraulic System: The hydraulic system carries out a vertical up/down (luffing) boom movement.

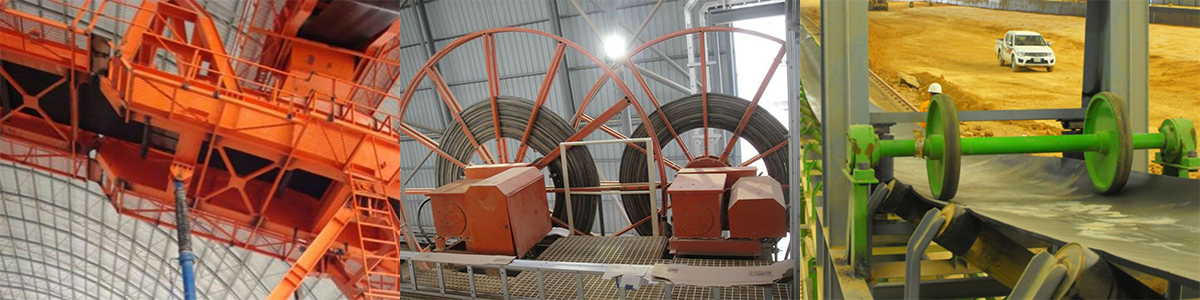

Cable Reel: The cable reel is used for storing power and control cables.
Tripper Car.
Steel Structural Support.

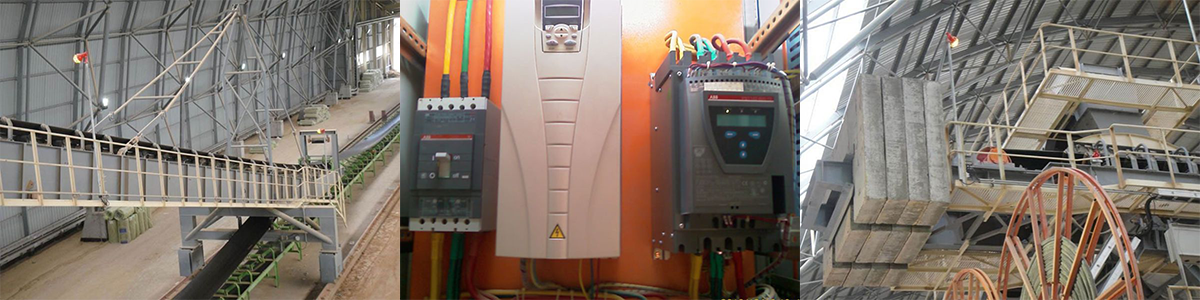

Operator Cabin: The operator cabin is mounted on the steel structural support, and is equipped with an interior PLC system and electrical cabinets.
Boom Counterweight: The boom counterweight is used to balance the stacker and keep it from falling over.
Features Of Side Type Boom Stacking Machine:
The overall structure of the stockyard should be taken into account during the automatic control design for the side type stacking machine' s side boom. To be more specific, the stockpile height should be pre-determined to ensure a flexible, efficient material stockpiling and reclaiming throughout the entire stock yard.
This bulk material handling equipment is outfitted with several control methods, which will ensure flexible bulk material handling in different situations.
With an easy installation, the side type stacking machine can be easily operated by a single employee after a simple training process.
About Us：

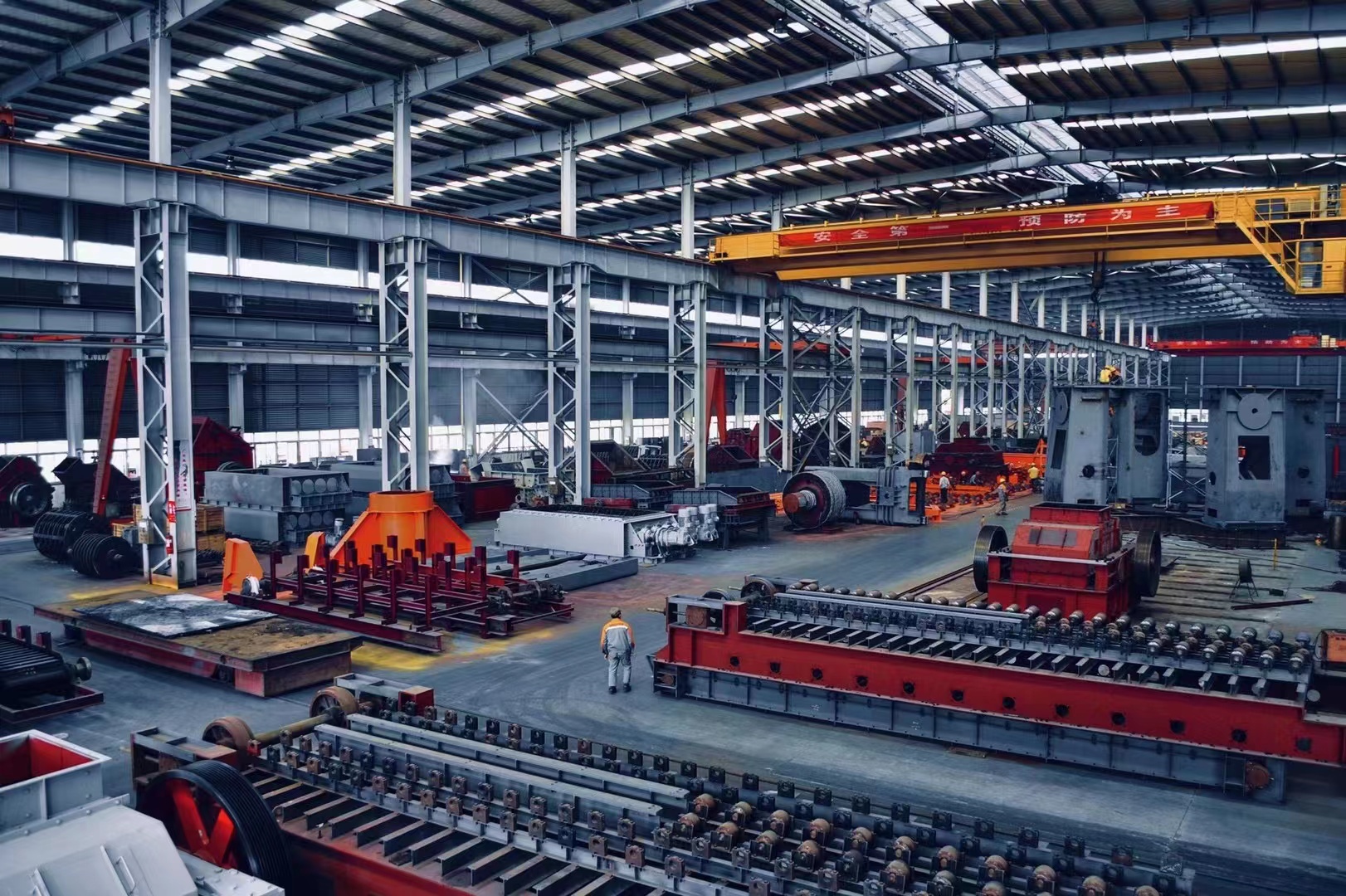

Liyang Sinoma occupies an important position in China's heavy equipment manufacturing industry. Our leading products, such as boom type stacking machine, cover cement, metallurgy, mining, electricity, coal, chemical industry and environmental protection. It is a leading enterprise in the national cement building materials industry and a production base for complete sets of cement equipment in China. Boom type stacker is exported to more than 50 countries and regions around the world. We have many years of experience in manufacturing boom type stacking machine and other products, and have cooperated with many companies. You can also fully trust our technology. If you have any questions about boom type stacker, please contact us.
