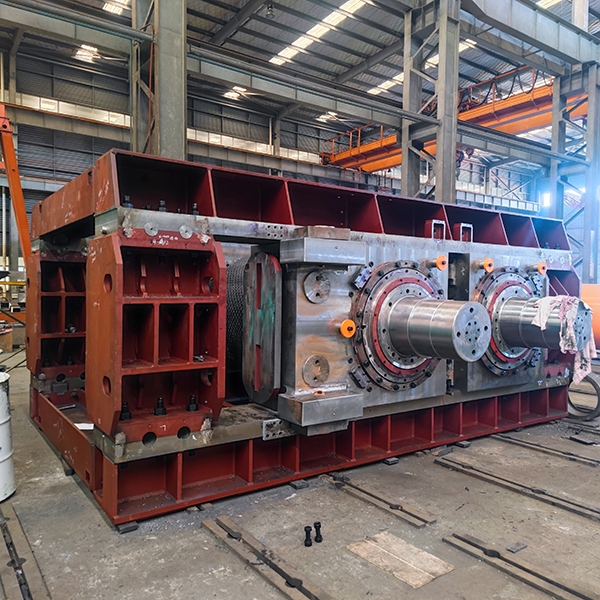

Product Introduction Of Roller Type Machine:
The roller press cement mill we produce is suitable for grinding raw materials, clinker, slag and steel slag in cement production lines. The roller type machine can also be used in mining, steel, chemical, electric power, metallurgy and other industries. The development and optimization of roller press machine has greatly improved the grinding efficiency and reduced energy consumption. The roller type machine has brought huge economic and environmental benefits to the cement manufacturing industry. The roller press in cement plant adopts hot surfacing technology to enhance the wear resistance of the roller type machine and reduce the maintenance frequency and difficulty of the roller type machine.
Parameters Of Roller Press Cement Mill:
| Model Of Hydraulic Roller Press | Capacity (T/H) Of Roller Press Cement Mill | Installed Power (Kw) Of Roller Press Cement Mill | Roller Linear Speed (M/S) Of Roller Press Machine |
| LRP120-45 | 140~190 | 2×250 | 1.2~1.44 |
| LRP120-80 | 250~340 | 2×500 | 1.2~1.44 |
| LRP140-65 | 200~300 | 2×560 | 1.43~1.65 |
| LRP140-80 | 340~400 | 2×560 | 1.43~1.65 |
| LRP140-100 | 400~500 | 2×630 | 1.43~1.65 |
| LRP140-110 | 500~550 | 2×710 | 1.43~1.65 |
| LRP140-120 | 500~600 | 2×800 | 1.43~1.65 |
| LRP140-140 | 520~680 | 2×900 | 1.43~1.65 |
| LRP160-100 | 500~650 | 2×900 | 1.52~1.76 |
| LRP160-140 | 650~765 | 2×1120 | 1.56~1.8 |
| LRP160-150 | 650~850 | 2×1120 | 1.56~1.8 |
| LRP180-120 | 800~850 | 2×1250 | 1.6~1.83 |
| LRP180-140 | 850~1000 | 2×1400 | 1.56~1.88 |
| LRP180-160 | 950~1130 | 2×1600 | 1.57~1.83 |
| LRP180-170 | 1000~1200 | 2×1800 | 1.57~1.83 |
| LRP200-120 | 850~1000 | 2×1400 | 1.59~2.0 |
| LRP200-160 | 1200~1300 | 2×2000 | 1.78 |
| LRP220-160 | 1300~1400 | 2×2240 | 2.1 |

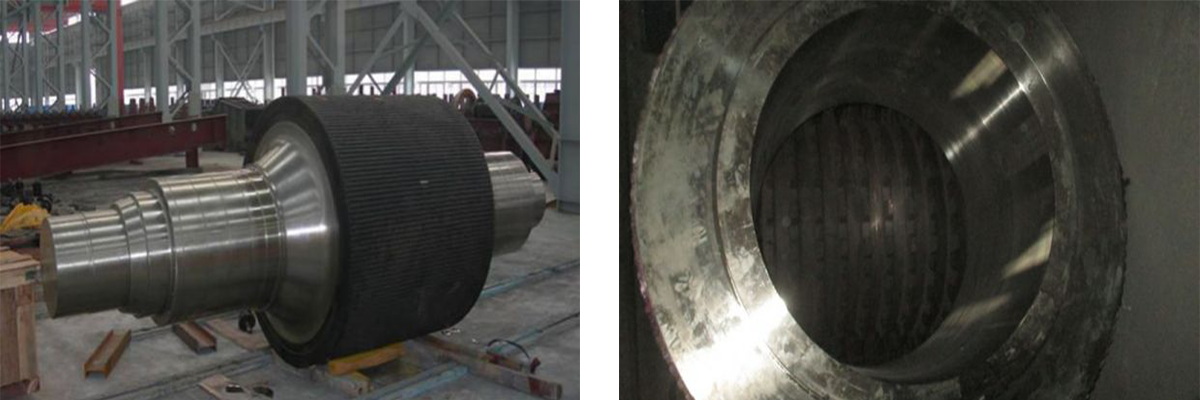

The Roller Is Forged Using High Quality Alloy Steel:

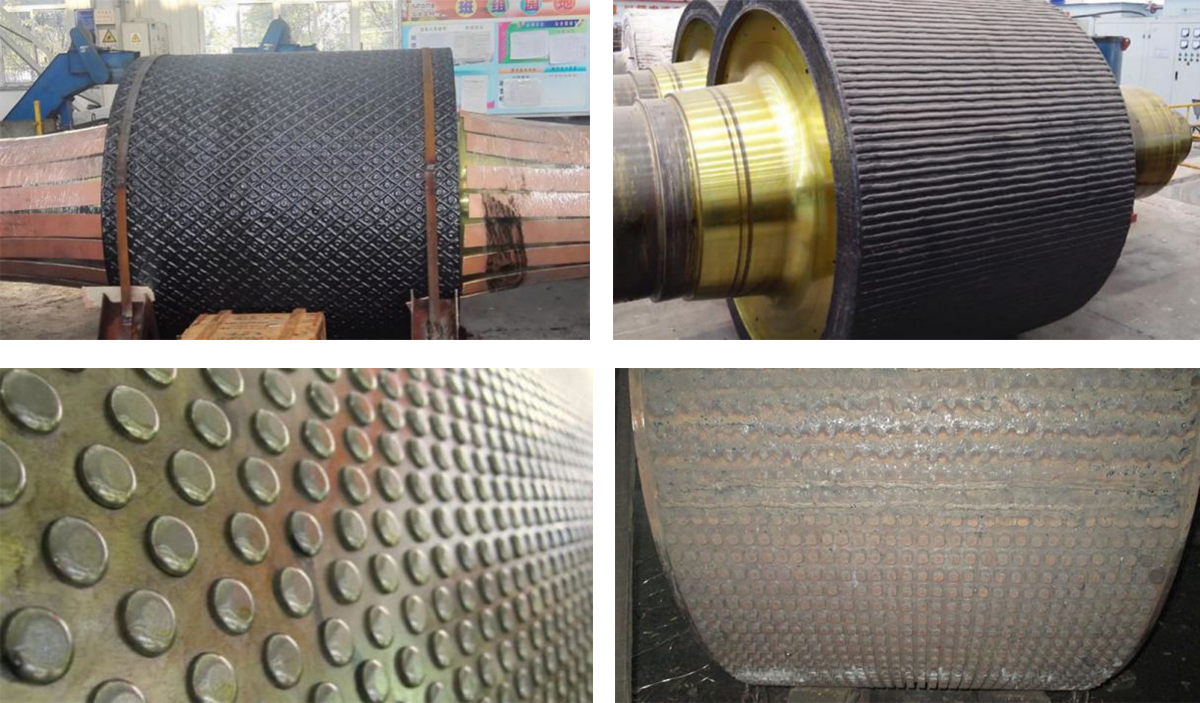

The roller shell is made using a weld overlay or with a stud setting-in structure depending on the material properties.
The cement mill roller press can be equipped with a planetary reducer and main gearing flexibly.

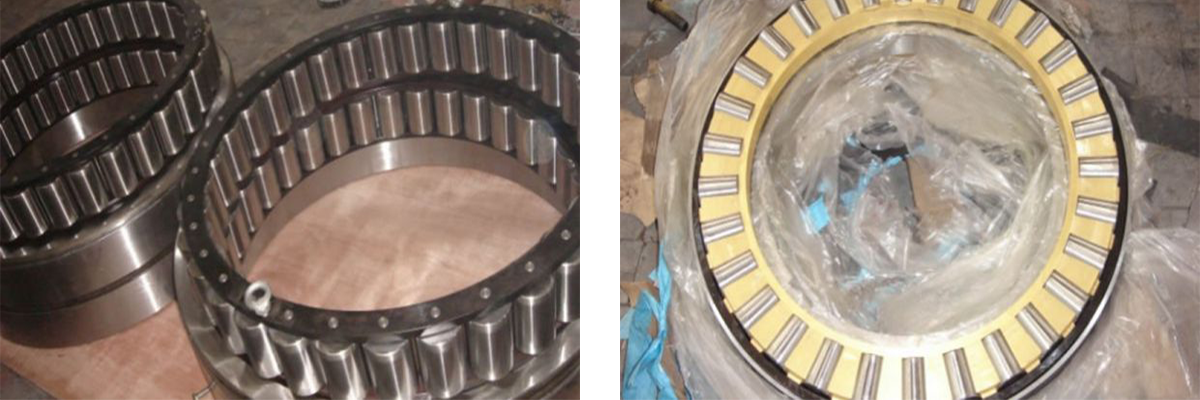

Program Control System, high integrated hydraulic system, key parts purchased from trustable suppliers.
Hydraulic auto-control;
Adjust of hydraulic parameters;
Central control scene of cement grinding;
Central control scene of slag grinding.

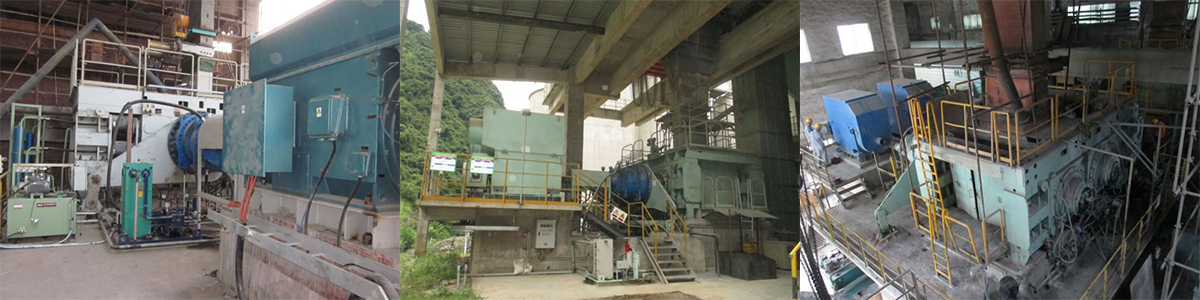

On-Site:
Features Of Roller Press In Cement Plant:
The roller type machine we produce adopts a unique roller system. The hydraulic roller press can grind the material better through high pressure load, thus improving the production efficiency and energy utilization of the hydraulic roller press.
The roller press cement mill is small in size and light in weight, occupies less plant space, and can save civil engineering investment.
The hydraulic roller press is used for cement grinding. Compared with pre-grinding systems such as ball mills, the roller press machine has low energy consumption and low noise.

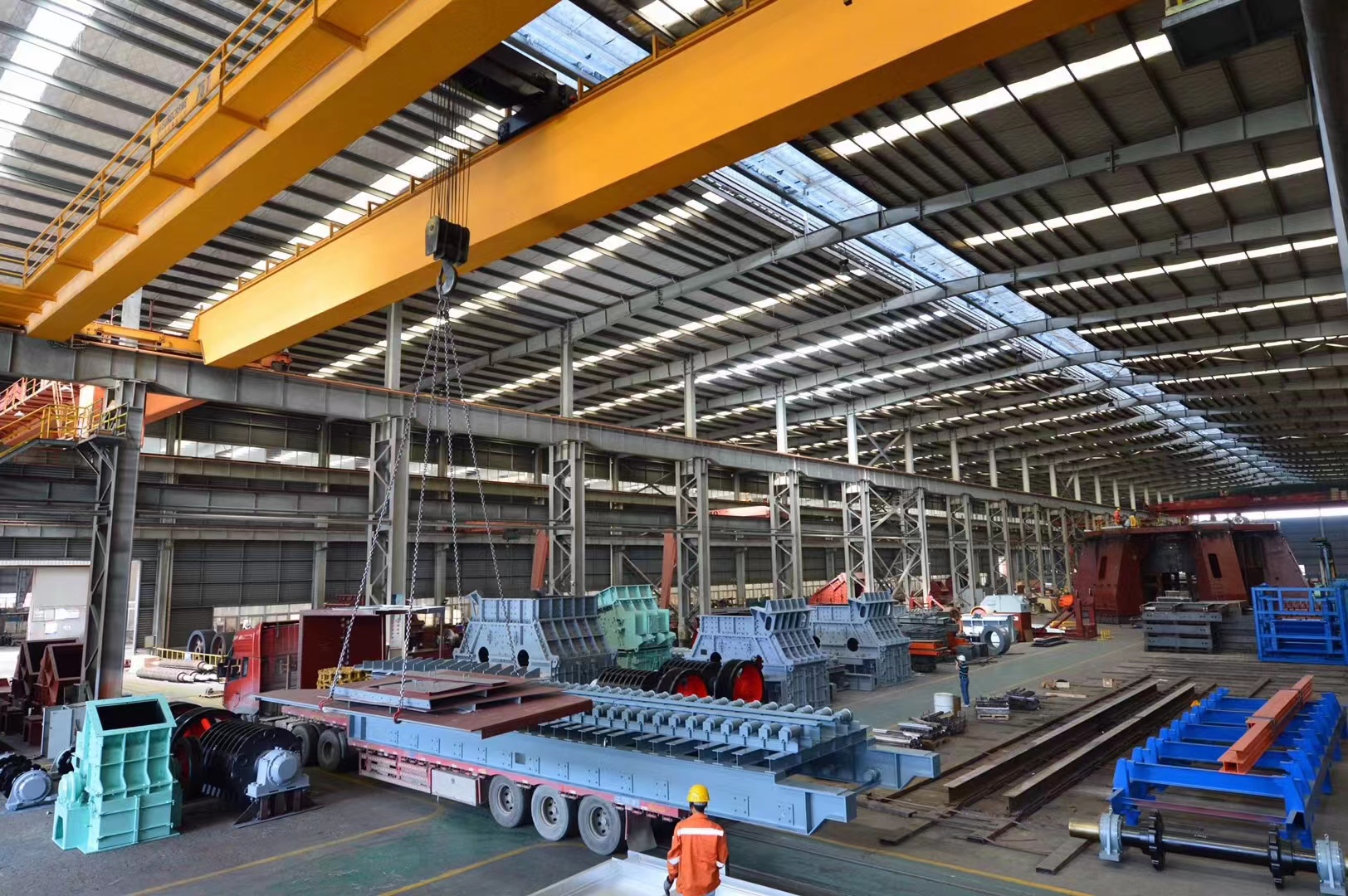

About Us:
