Product Introduction Of Ring Hammer Crushing Machine:
Our product ring granulator crusher is a high-efficiency crushing equipment that combines the advantages of hammer and impact crushers. ring crusher is mainly used to crush various brittle materials with medium hardness and weak corrosiveness. Ring crusher is widely used in mining, cement, coal, metallurgy, building materials, roads and fuel industries. The structural design of the ring crusher equipment takes special consideration of the hardness and block size of the material, so that large blocks of material can also be effectively crushed. In addition, the amount of stone powder produced by the ring crusher is very small, which helps to improve the cleanliness and quality of the ring crusher.
Wreath Hammer Crusher Parameters:
| Ring crusher model | PCH-0604 | PCH-0808 | PCH-1010 | PCH-1016 |
| Rotor Working Diameter / Length(mm) Of Ring Crusher | 600×400 | 800×800 | 1000×1000 | 1000×1600 |
| Rotor Speed (r/min) Of Ring Hammer Crushing Machine | 970 | 740 | 740 | 740 |
| Inlet Size (mm) | 460×530 | 470×828 | 586×1040 | 586×1768 |
| Maximum Feed size (mm) | 200 | 200 | 300 | 300 |
| Discharge Granularity (mm) | 45381 | 45381 | 45381 | 45381 |
| Processing capacity (t/h) | 22-33 | 75-105 | 200-245 | 400-500 |
| Motor power (kW) | 18.5 | 45 | 110 | 220 |
| Weight (Excluding Motor)(kg) | 1430 | 3600 | 6100 | 9740 |
| Physical Dimension (mm) | 1984x1410x800 | 2801.5x1720x1090 | 3554x2000x1340 | 5350x2800x1395 |
Features Of Ring Crusher:
The maximum manufacturing capacity of the ring hammer crushing machine we produce is 500 tons/hour.
The ring hammer and rotor of the ing crusher are made of high-strength manganese alloy, which has long life, high strength and low loss.
Due to the use of high-strength materials, the replacement cycle of wearing parts of the ring hammer crushing machine is longer, which helps to reduce the cost of wearing parts.
Each ring crusher is wrapped with a wooden frame during transportation to avoid any damage during transportation.
The ring hammer crushing machine is simple to maintain, and we also provide customers with professional maintenance and operation training, as well as teaching materials to make the equipment easy and safe to operate.
Maintenance And Overhaul Of Wreath Hammer Crushing Machine:
Regularly add grease to the bearings of ring granulator crusher, check the reliability of fasteners and the wear of worn parts.
When the ring hammer of wreath hammer crusher is worn too much, it should be replaced. When the screen plate and coal crushing plate of ring granulator crusher are worn to a certain amount, they must also be replaced.
Clean up the debris in the metal collector every shift to keep the crushing chamber of ring granulator crusher free of foreign matter.
When using wreath hammer crushing machine, it is necessary to strictly install the equipment according to the installation requirements, and ensure the normal operation of the equipment after no-load and load test runs. In daily operation and maintenance, pay attention to checking and replacing the worn parts of ring granulator crusher and cleaning up the debris to ensure the efficient and stable operation of wreath hammer crusher.
About Us:

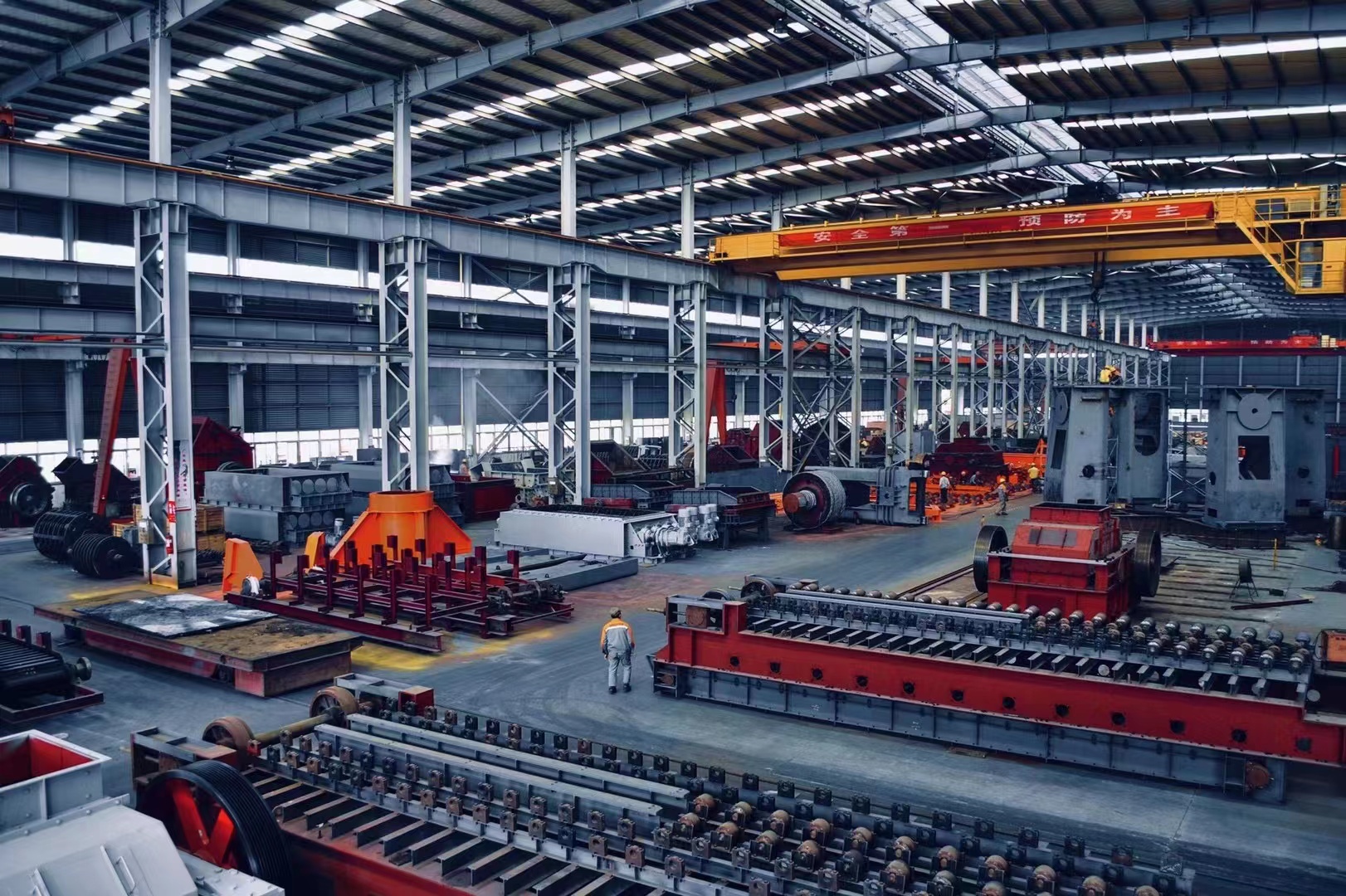

Liyang Sinoma is a large-scale machinery and equipment manufacturing base with an annual processing capacity of 300,000 tons of wreath hammer crushing machine and other products. It is an international engineering service provider integrating wreath hammer crushing machine development and design, processing and manufacturing, and engineering technology consulting services. We focus on the development and manufacturing of wreath hammer crusher and other products. You can trust us completely. If you have any questions about wreath hammer crusher, please feel free to contact us!
