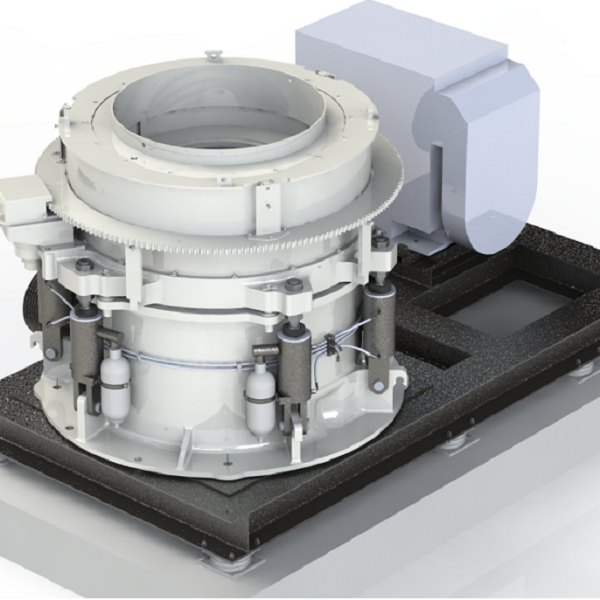

Product Introduction Of Portable Cone Crusher:
The hydraulic cone crusher we produce is a kind of crushing equipment widely used in mining, metallurgy, construction and other industries. mobile cone crusher has the characteristics of high power, large crushing ratio and high productivity. The cone crusher machine is suitable for fine and ultra-fine crushing of hard rocks, ores, slag and refractory materials. Through continuous technological innovation and process improvement, the performance of mobile cone crusher continues to improve, providing efficient and reliable crushing solutions for various industries.
Technical Data Of Hydraulic Cone Crusher:
| Mobile Cone Crusher Model | Chamber | Feed Size Of Spring Cone Crusher (Mm) | Min. Discharge Opening (mm) of cone crusher machine | Power (kW) of cone crusher machine |
| HYP200 | C | 185 | 19 | 160 |
| M | 125 | 17 | ||
| F | 95 | 13 | ||
| EF | 76 | 10 | ||
| HYP300 | EC | 233 | 25 | 250 |
| C | 211 | 19 | ||
| M | 150 | 17 | ||
| F | 107 | 13 | ||
| EF | 77 | 10 | ||
| HYP400 | EC | 299 | 30 | 315 |
| C | 252 | 25 | ||
| M | 198 | 20 | ||
| F | 111 | 14 | ||
| EF | 92 | 10 | ||
| HYP500 | EC | 335 | 30 | 400 |
| C | 286 | 25 | ||
| M | 204 | 20 | ||
| F1 | 133 | 16 | ||
| EF | 95 | 13 | ||
| HYP800 | EC | 353 | 32 | 630 |
| C | 297 | 32 | ||
| M | 267 | 25 | ||
| F | 219 | 16 | ||
| EF | 155 | 13 |
Production Capacity Of Hydraulic Cone Crusher:
| Discharge Opening (Mm) Of Portable Cone Crusher | |||||||||||
| Spring Cone Crusher Model | 10 | 13 | 16 | 19 | 22 | 25 | 32 | 38 | 45 | 51 | |
| HYP200 | t/h | 90-120 | 120-150 | 140-180 | 150-190 | 160-200 | 170-220 | 190-235 | 210-250 | ||
| HYP300 | t/h | 115-140 | 150-185 | 180-220 | 200-240 | 220-260 | 230-280 | 250-320 | 300-380 | 350-440 | |
| HYP400 | t/h | 140-175 | 185-230 | 225-280 | 255-320 | 275-345 | 295-370 | 325-430 | 360-490 | 410-560 | 465-630 |
| HYP500 | t/h | 175-220 | 230-290 | 280-350 | 320-400 | 345-430 | 365-455 | 405-535 | 445-605 | 510-700 | 580-790 |
| HYP800 | t/h | 260-335 | 325-425 | 385-500 | 435-545 | 470-600 | 495-730 | 545-800 | 600-950 | 600-1050 | 785-1200 |
Features Of Hydraulic Cone Crusher:
Designed for medium and fine crushing of hard materials, our cone crusher machine can be used for a wide range of applications in different industries.
We offer three types of cone crusher machine: standard type for medium crushing, short head type for fine crushing and medium type for medium crushing, ensuring a perfect fit for every crushing need.
Spring cone crusher is ideal for businesses that have different requirements for their crushing process; for smaller production volumes, a jaw crusher or roll crusher may be sufficient, but for larger operations, our spring cone crusher provides the necessary efficiency and power, making it the best choice for large-scale crushing tasks.
About Us:

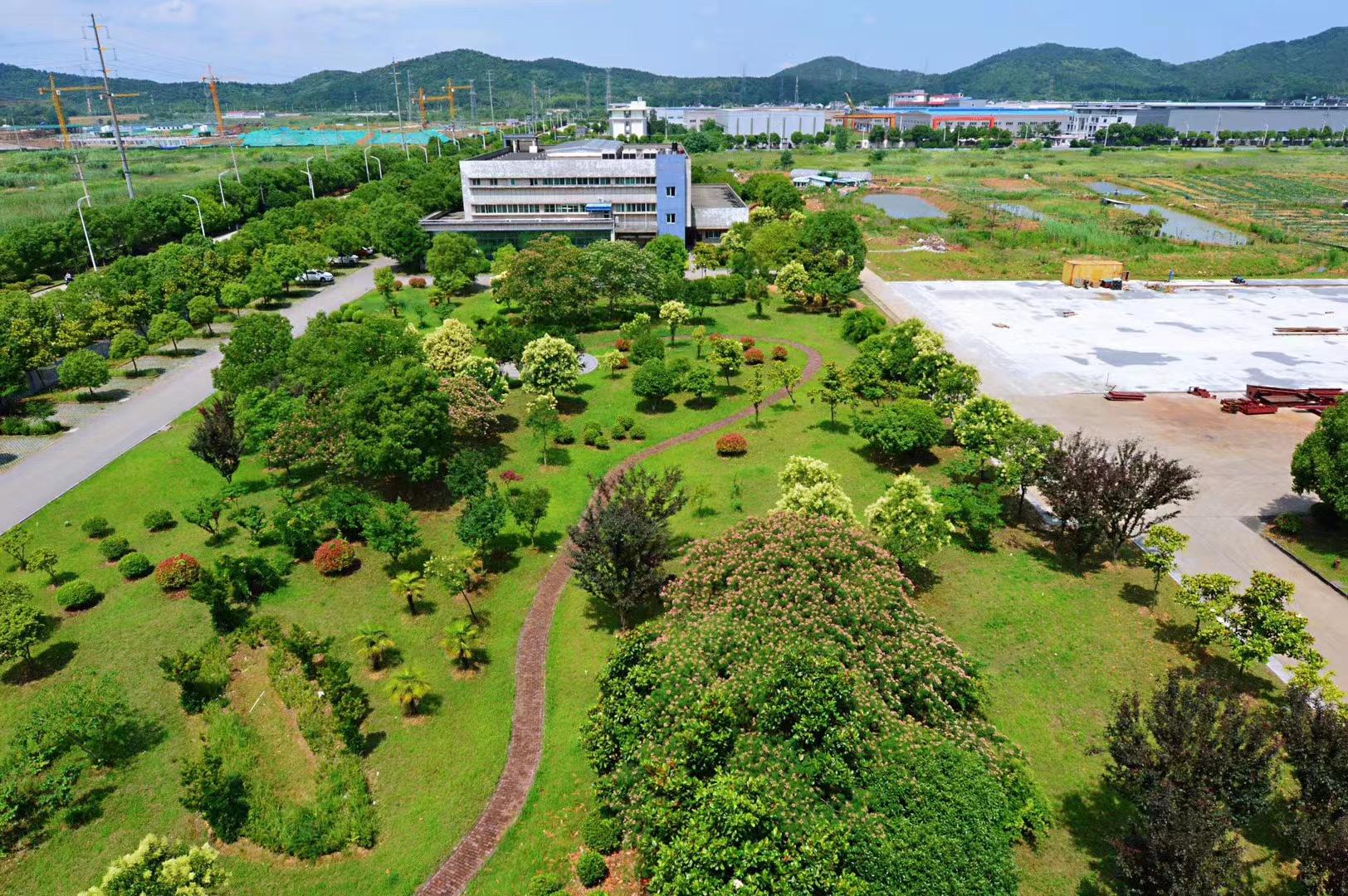

Liyang Sinoma has a large-scale mechanical equipment manufacturing base such as portable cone crusher, with an annual processing capacity of 300,000 tons. It is an international engineering service provider integrating the development and design, processing and manufacturing of mobile cone crusher machine, and complete engineering technology consulting services. We also provide stable and reliable logistics services for portable cone crusher, and take appropriate safety measures to prevent Spring cone crusher from being damaged or lost during transportation. We also have a professional technical support team that can effectively solve technical problems encountered by customers in the process of using portable cone crusher. If you have any questions or needs about portable cone crusher products, please contact us.
